Difference Between Sensor and Actuator: Complete Guide

Introduction

In today’s digital world, two components stand out as the bridge between the real world and the digital system: sensors and actuators. These devices are fundamental to any automation, robotics, or IoT system.

When someone says, “This machine can feel the environment and act accordingly,” you are witnessing a system powered by both a sensor and an actuator.

But while these two often go hand-in-hand, they perform completely opposite functions. In this article, we’ll simplify these two concepts, explore their types, applications, and give you a practical understanding of the difference between sensor and actuator.

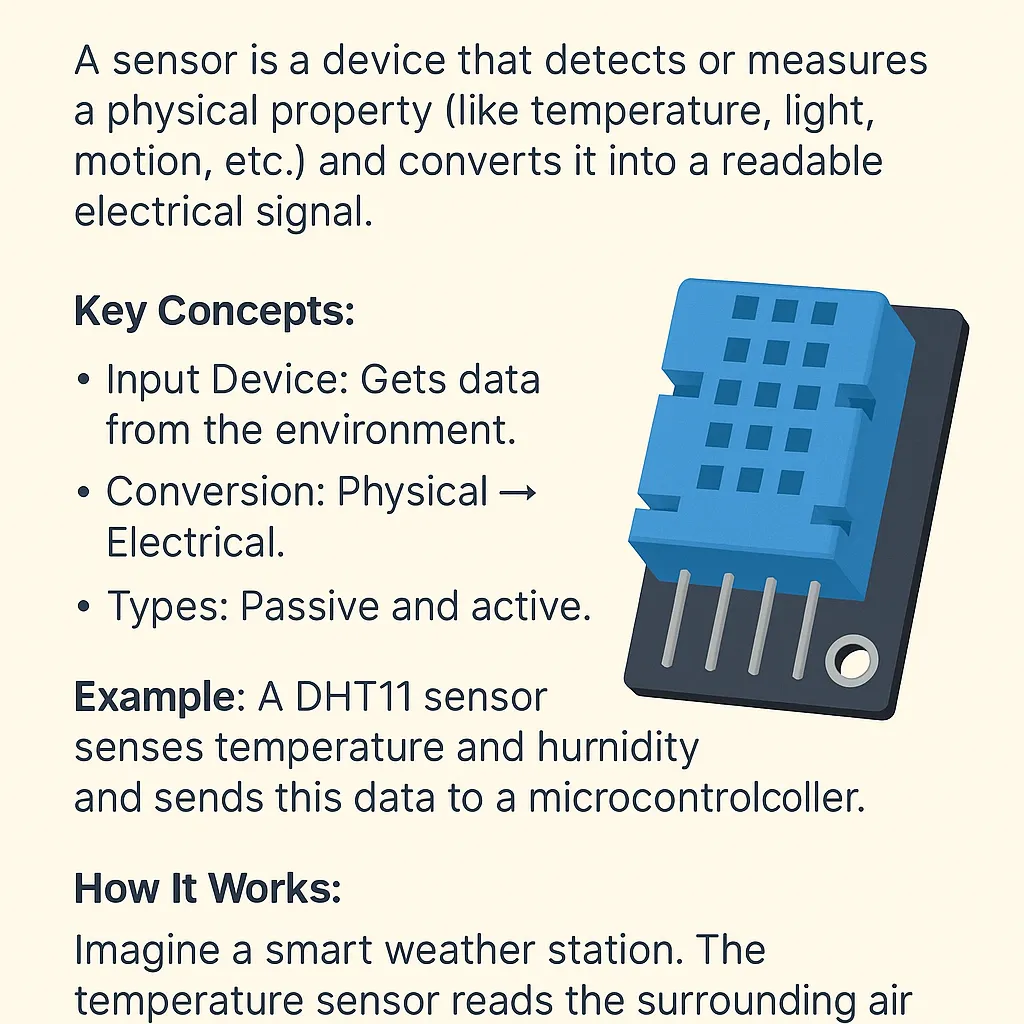

What Is a Sensor?

A sensor is a device that detects or measures a physical property (like temperature, light, motion, etc.) and converts it into a readable electrical signal.

Key Concepts:

  • Input Device: Gets data from the environment.
  • Conversion: Physical → Electrical.
  • Types: Passive and active.
  • Example: A DHT11 sensor senses temperature and humidity and sends this data to a microcontroller.

How It Works:

Imagine a smart weather station. The temperature sensor reads the surrounding air temperature. This physical information (heat) is converted to an electrical signal and passed to the processor.

Sensors and actuators what is sensor



See moreWhat is a Sensor?  Sensors meaning, Types, Smart & Wireless Sensors 2025

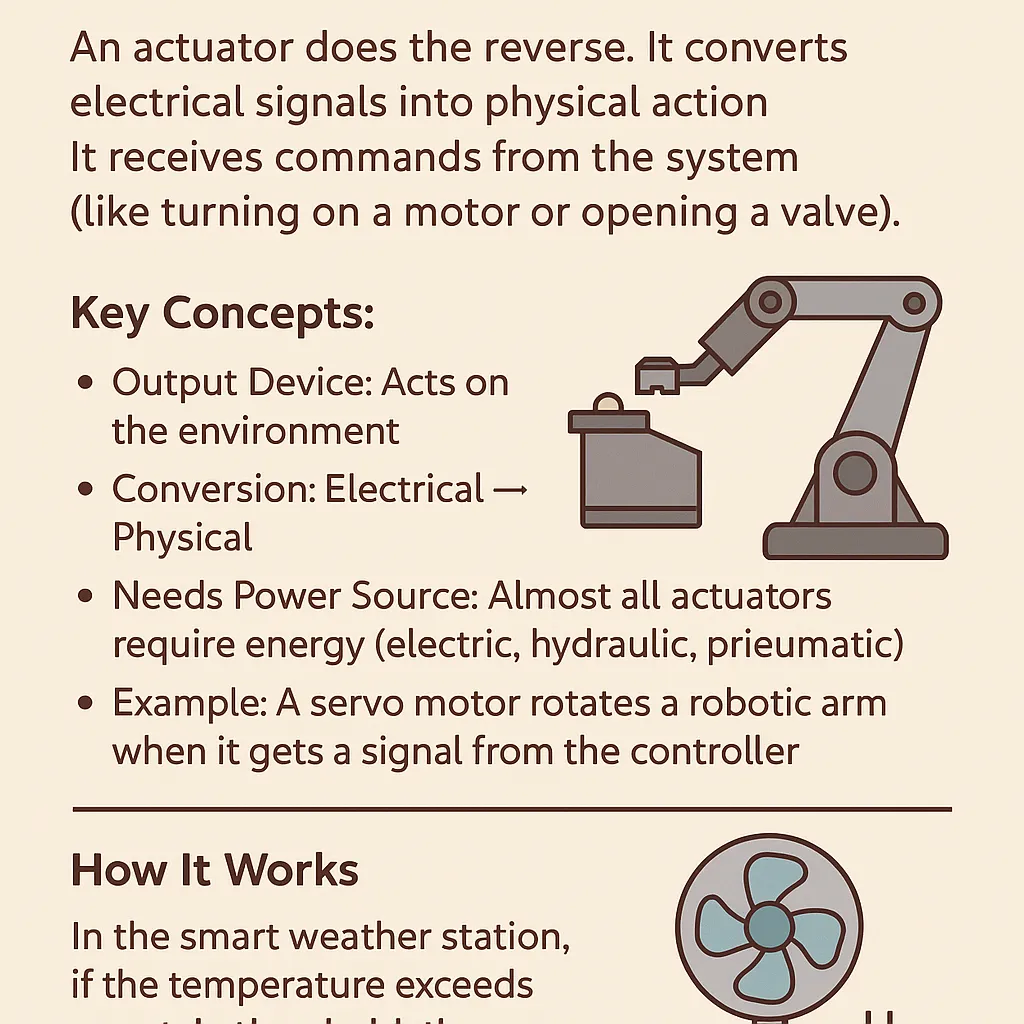

What Is an Actuator?

An actuator does the reverse. It converts electrical signals into physical action. It receives commands from the system (like turning on a motor or opening a valve).

Key Concepts:

  • Output Device: Acts on the environment.
  • Conversion: Electrical → Physical.
  • Needs Power Source: Almost all actuators require energy (electric, hydraulic, pneumatic).
  • Example: A servo motor rotates a robotic arm when it gets a signal from the controller.

How It Works:

In the smart weather station, if the temperature exceeds a certain threshold, the microcontroller signals the cooling fan (an actuator) to turn ON.



what is an actuator sensors and actuators



Sensor and Actuators in IoT Systems

IoT (Internet of Things) devices sense and act – and sensors and actuators are the heart of this behavior.

ComponentRole in IoT
SensorCollects data from the real world (temperature, light, motion, etc.)
ActuatorActs based on decisions made by the IoT system (move, open, rotate, etc.)

Think of it like this:

  • Sensor = Eyes & Ears
  • Actuator = Hands & Legs



Working Principles of Sensors and Actuators

Sensors

  • Sensors often rely on physical principles like resistance change, capacitance, piezoelectricity, and optical reflection.
  • Example: A photoresistor changes its resistance when exposed to light.

Actuators

  • Actuators use mechanical movement or thermal expansion.
  • Example: A solenoid valve opens a pipeline when energized.



Types of Sensors and Actuators

Types of Sensors

TypeDescriptionExample
Temperature SensorMeasures heat levelsDHT11, LM35
Light SensorDetects light intensityLDR
Proximity SensorDetects nearby objectsIR sensor
Motion SensorSenses movementPIR sensor
Pressure SensorDetects pressure changesBMP180
Humidity SensorMeasures moisture in airDHT22

Types of Actuators

TypeDescriptionExample
Electric ActuatorConverts electrical energyServo motor, DC motor
Hydraulic ActuatorUses liquid pressureHydraulic press
Pneumatic ActuatorUses air pressurePneumatic valve
Thermal ActuatorUses temperatureBimetallic strips
Manual ActuatorOperated by handMechanical switch



Sensor vs Actuator: Key Differences

Understanding the difference between a sensor and an actuator is foundational for anyone entering fields like IoT, embedded systems, robotics, or automation. Though they often work together in systems, their roles are fundamentally opposite—one senses, the other acts.

sensor vs actuator difference between sensor and actuator

Here is a detailed comparison of the two:

1. Function / Role

  • Sensor: A sensor’s job is to observe the environment. It detects a physical property—like light, temperature, pressure, motion, or humidity—and transforms it into a signal that a computer or controller can understand.
  • Actuator: An actuator performs an action based on instructions received. It takes electronic signals and converts them into mechanical movement, heat, or some other physical form.

Think of the sensor as your eyes/ears (sensing the world) and the actuator as your hands/legs (doing something in the world).

2. Direction of Operation (Input vs Output)

  • Sensor: Operates as an input device. It receives data from the physical world and provides it to the control unit (like an Arduino or Raspberry Pi).
  • Actuator: Works as an output device. It receives control signals and interacts with the environment to produce a physical change.

Example: In a smart fan system:

  • Sensor = Temperature sensor (input: reads room temperature)
  • Actuator = Fan motor (output: spins fan blades)

3. Signal Conversion

  • Sensor: Converts physical signals (like heat, light, or motion) into electrical signals that can be processed.
  • Actuator: Converts electrical signals into physical actions (such as rotation, movement, heat generation).

This conversion mechanism is what makes sensors and actuators complementary components in a control system.

4. Power Dependency

  • Sensor: Some sensors are passive (do not require external power, e.g., photovoltaic cells), while others are active (require a power supply to function, e.g., IR sensors).
  • Actuator: Always needs a power source to operate. Without energy (electrical, hydraulic, pneumatic), an actuator cannot produce motion or physical changes.

Example: A stepper motor (actuator) will not rotate unless powered.

5. Interaction with the Control System

  • Sensor: Sends data or signals to the processing unit (like a microcontroller or IoT gateway). It informs the system about the environment.
  • Actuator: Receives commands from the processing unit and takes appropriate action based on logic or programmed conditions.

The data flow is:

Sensor → Controller → Actuator

6. Examples in Real-World Use

ScenarioSensorActuator
Smart light systemPIR motion sensor detects movementLight bulb switches ON
Smart irrigationSoil moisture sensor measures drynessWater pump activates
Smart home ACThermistor detects temperatureCompressor motor powers ON

As you can see, the sensor triggers a system response and the actuator carries it out.

7. Physical Form and Design

  • Sensors: Often compact and lightweight. Designed to be placed on devices, surfaces, or within objects. Can be embedded in wearable devices.
  • Actuators: Usually bulkier and more mechanical in structure. They may have rotating parts, valves, or heating coils depending on the type.

Example: A tiny DHT11 sensor vs a relatively larger servo motor.

8. Maintenance and Wear

  • Sensor: Generally have a longer lifespan as they don’t perform mechanical work. However, exposure to extreme conditions (e.g., corrosive gases, dust) can degrade performance.
  • Actuator: Subject to wear and tear over time due to physical movement or stress. Motors, pistons, and valves require regular maintenance in industrial settings.

Proper care and scheduled servicing are more critical for actuators than for sensors.

9. Response Characteristics

  • Sensor: Measured in terms of sensitivity, response time, and accuracy. These factors determine how fast and how precisely a sensor detects changes.
  • Actuator: Evaluated by torque, speed, force, and precision of motion. These determine how effectively an actuator performs its task.

In applications like robotics, both precision sensing and accurate actuation are crucial.

10. Cost Factors

  • Sensor: Generally cheaper, especially common ones like temperature or light sensors.
  • Actuator: Often more expensive due to mechanical complexity, power requirements, and materials used.

For example, a photoresistor (LDR) may cost ₹10–₹30, whereas a standard servo motor might cost ₹150–₹500 or more.



Summary Comparison Table

AttributeSensorActuator
RoleDetect environmental changesCarry out actions based on control signals
OperationInput to the systemOutput from the system
Signal ConversionPhysical → ElectricalElectrical → Physical
Energy RequirementPassive or ActiveAlways requires power
InteractionFeeds data to the controllerResponds to controller commands
Real-World ActionDetects heat, light, motion, etc.Moves, rotates, heats, opens, etc.
DesignLightweight, non-mechanicalMechanical, may have moving parts
LifespanLong (less mechanical stress)Shorter (subject to wear)
ExampleLight sensor, temperature sensorDC motor, heating coil



Real-World Examples

real world examples of sensors and actuators

Smart Home:

  • Sensor: Motion sensor detects movement.
  • Actuator: Smart light turns on automatically.

Healthcare:

  • Sensor: Heart rate monitor tracks beats.
  • Actuator: Pump adjusts medication flow.

Automotive:

  • Sensor: Ultrasonic sensor for parking.
  • Actuator: Steering system assists in maneuvering.

Agriculture:

  • Sensor: Soil moisture sensor.
  • Actuator: Irrigation pump switches on when soil is dry.

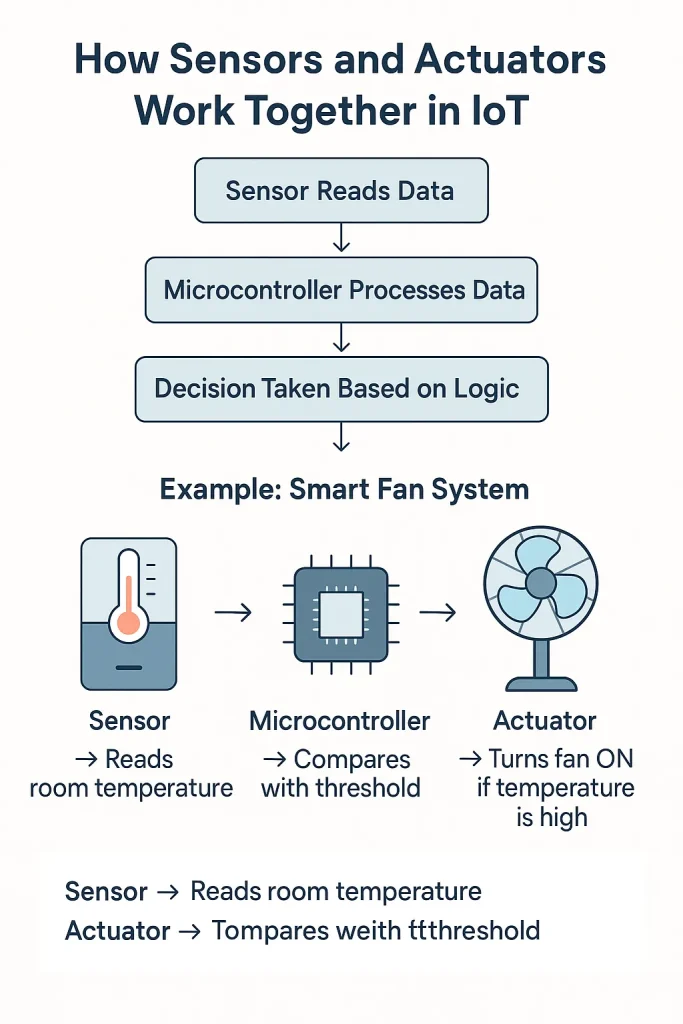

How Sensors and Actuators Work Together in IoT

Here’s a flow to understand how they combine:

[Sensor Reads Data]
    ↓
[Microcontroller Processes Data]
    ↓
[Decision Taken Based on Logic]
    ↓
[Actuator Takes Action]

Example: Smart Fan System

  • Sensor → Reads room temperature
  • Microcontroller → Compares with threshold
  • Actuator → Turns fan ON if temperature is high

how sensors and actuators work together in IoT



Advantages and Limitations

Sensors:

Pros:

  • Low power
  • Wide variety
  • Compact

Cons:

  • Sensitive to noise
  • Limited range depending on type

Actuators:

Pros:

  • Can perform complex tasks
  • Fast response

Cons:

  • Requires higher power
  • Wear and tear possible



Applications Across Industries

IndustrySensor ExampleActuator Example
Smart HomesLight sensorCurtain motor
AutomotiveParking sensorWiper motor
ManufacturingPressure sensorRobotic arm
HealthcareTemperature sensorMedication pump
AerospaceGyroscopeJet nozzle control



Sensor and Actuators Selection Guide

How to Choose the Right Sensor:

  • What physical quantity do you need to measure?
  • What is the required sensitivity and accuracy?
  • Is it compatible with your microcontroller?

How to Choose the Right Actuator:

  • What physical task needs to be done?
  • What is the required force and movement?
  • What power source is available?



See alsoBMP180 Pressure Sensor for Arduino and Raspberry Pi Boards



Frequently Asked Questions (FAQs)

Q1: What is the main difference between a sensor and an actuator?

A: A sensor reads from the environment and sends signals to the system, while an actuator takes signals from the system and affects the environment.

Q2: Can a device be both a sensor and an actuator?

A: Some devices have dual functionality, but generally, sensors and actuators are separate components.

Q3: Do actuators always require power?

A: Yes, actuators typically require power to generate physical movement or changes.

Q4: Are sensors passive or active?

A: Both exist. Passive sensors work without an external power source, while active ones need power.

Q5: Where are sensors and actuators used in combination?

A: In almost all automation systems like robotics, cars, home automation, and industrial IoT systems.



See also:

  1. Essential Components of IoT: Sensors, Actuators and Microcontrollers
  2. MQTT Protocol in IoT: Complete Guide with Examples and Architecture (2025)
  3. Wokwi Online Simulator: Simulate Arduino & ESP32 IoT Projects



Conclusion

In the growing world of smart devices, understanding the difference between sensor and actuator is vital. While sensors help machines feel, actuators help them respond. The synergy between these components powers everything from robotic arms to smart homes, wearables to autonomous vehicles.

Whether you’re a student, a beginner in IoT, or a robotics enthusiast, mastering these components is your first step in building intelligent systems.
